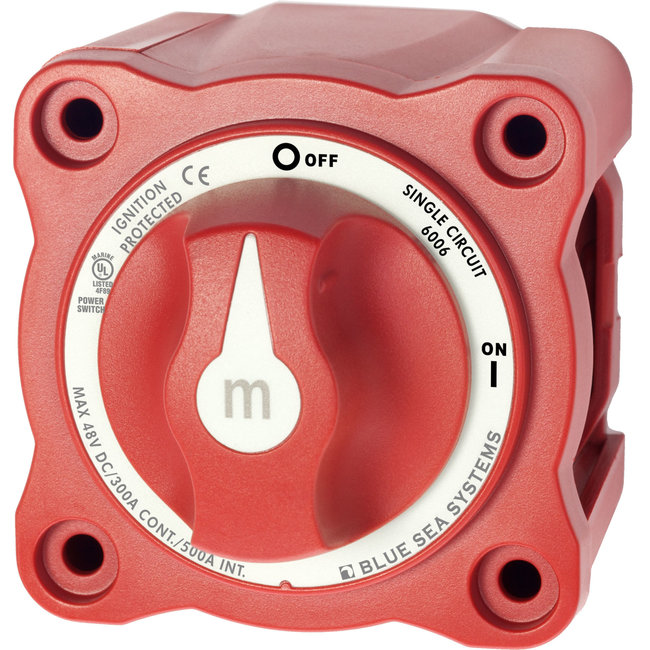

m-Series Mini On-Off Battery Switch with Knob - Red

• Ignition protected—safe for installation aboard gasoline powered boats
• Case design allows surface, front panel, or rear panel mounting
• Isolating cover with snap-on sections protects rear contacts
• Switch Type: Single Circuit ON-OFF
• Colour: Red
• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 48V DC
• Continuous Rating: 300A
• Intermittent Rating: 500A (5 min)
• Cranking Rating 10 sec: 1500A
• Cranking Rating 1 min: 775A
• Battery Inputs: 1
• Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept #10 Screw
• Terminal Stud Size: 3/8" - 16 (M10)
• Terminal Stud Torque: 120 in-lb (13.56 Nm)
