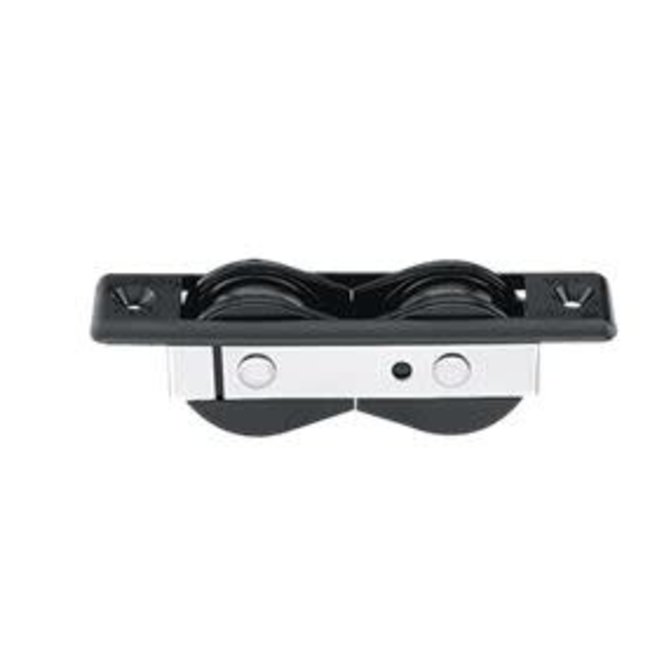

Big Bullet Inline Exit

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications.

• Sheave Ø (mm) 38 mm
• Sheave Ø (in) 1 1/2 in
• Length (mm) 127 mm
• Length (in) 5 in
• Mounting hole spacing (mm) 110 mm
• Mounting hole spacing (in) 4 5/16 in
• Cutout (mm) 24 x 94 mm
• mmCutout (in) 15/16 x 3 11/16 in
• Maximum working load (kg) 272 kg
• Maximum working load (lb) 600 lb
• Breaking load (kg) 907 kg
• Breaking load (lb) 2000 lb
