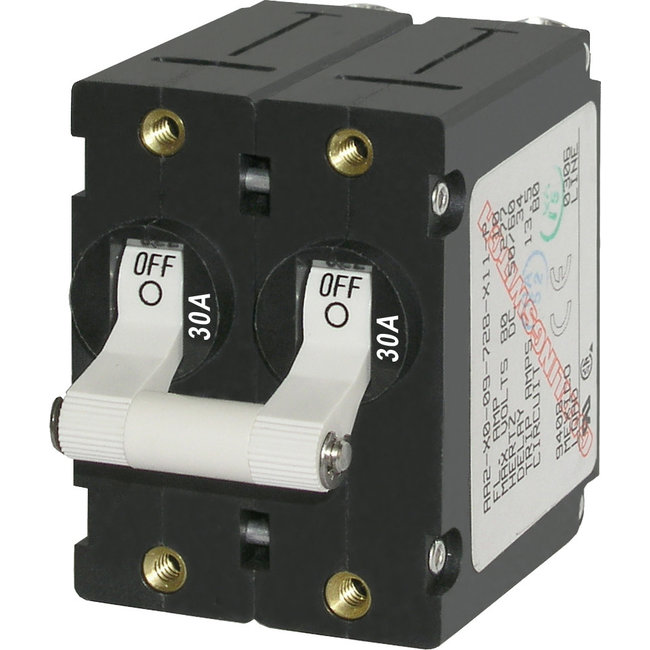

A-Series White Toggle Circuit Breaker - Double Pole 30A

• Meets American Boat and Yacht Council (ABYC) standards
• The industry standard circuit breaker for Blue Sea Systems" electrical panels
• Combines swtiching and circuit protection into a single device
• "Trip Free" design cannot be held "ON" during fault current condition
• Amperage: 30A AC, 30A DC
• Colour: White
• Actuator Style: Toggle
• Poles: 2
• Maximum Voltage: 250V AC, 65V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 3000A @ 120V AC, 3000A @ 240V AC, 1500A @ 250V AC [TUV], 3000A @ 250V AC [UL 1077], 7500A @ 65V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque: 14 in-lb (1.58 Nm)
• Switching Cycles: 10000
• Terminal Screw: #10-32 Stainless Steel
