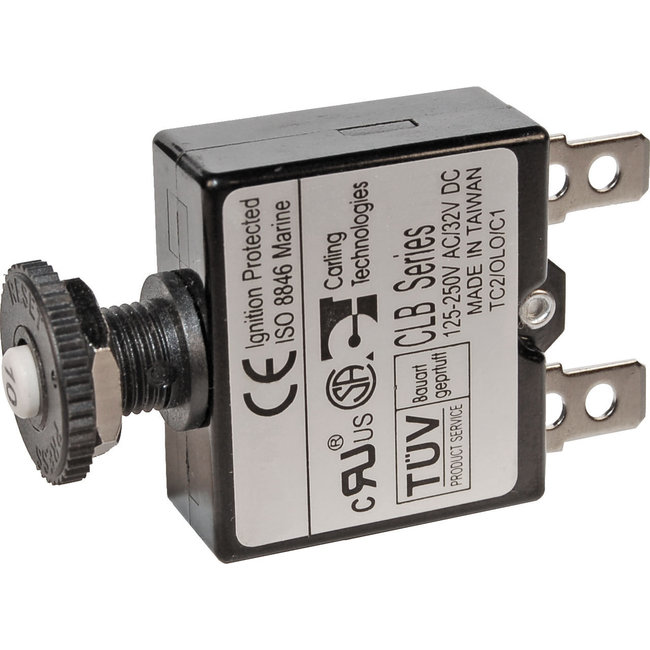

Push Button Reset Only Quick Connect Circuit Breaker - 5 Amps

• Branch circuit breakers (can also be used for 24-hour circuit protection)
• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• “Trip Free” design cannot be held “ON” during fault current condition
• Ignition protected - Safe for installation aboard gasoline powered boats
• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
• Amperage: 5A
• Maximum Voltage: 32V DC
• Mounting Panel Mount: 3/8-27 UNS
• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Terminal Type: 1/4 Male Quick Connect
• Interrupt Capacity: 3000A @ 14.7V, 2500A @ 28V
• Minimum Operating Temperature: -10° C
• Maximum Operating Temperature: 60° C
• Screw Terminal Torque: 6 in-lb (0.68 Nm)
