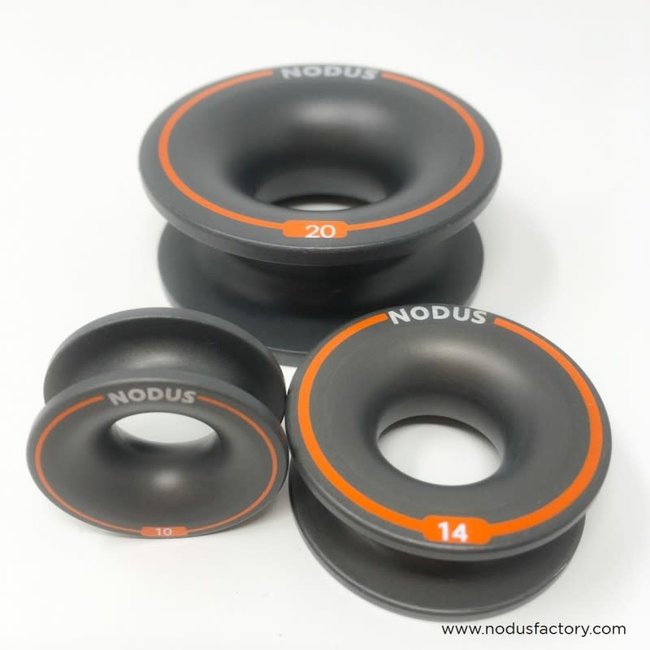

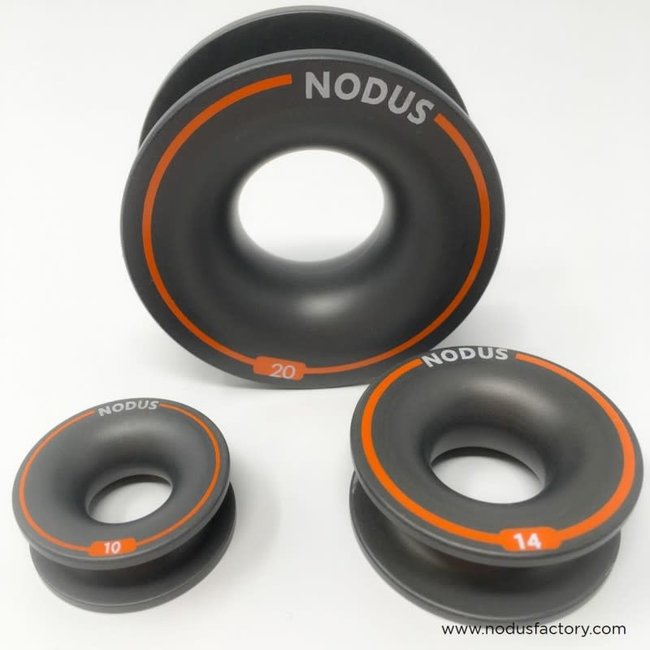

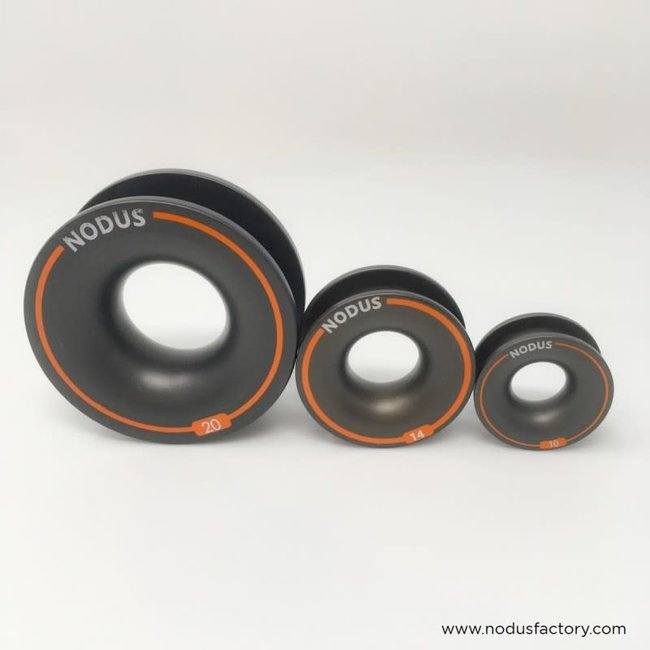

Nodus Factory FRD 14 Low Friction Ring Duraluminum
The Nodus Factory friction ring is an hard anodized aluminium ring with a super slippery Teflon coated surface. It is also very light, reliable and resistant. The Nodus friction ring is used in numerous applications and for all types of rope. Read more..
Product description
FrD® the Nodus Factory® friction ring has a super slippery Teflon coated surface. It is also very light, reliable and resistant. The Nodus friction ring is used in numerous applications and for all types of rope.
This product allows an infinite number of combinations, especially where peak loads are the rule, such as backstays, cascade dumbbells, barbers and many others.
+ USES
- Mast foot, in-hauler
- Barber, in-haulers or as spare pulley
- Tackle (Mainsail, vang, running backstay, etc.)
- Hoists (mainsail, vang, running backstay,…etc)
Product Name | Breaking Load | Ø A | Ø B | Ø C | Ø D | Ø Rope Recommended | Weight |
| Angle |  0° |  |  |  |  | Halyard and sheet |  |
| Duralumin | KG | mm | mm | mm | mm | mm | gr |
| FrDÂ 10 | 1500 | 7 | 12 | 12 | 30 | 8 max. | 8 |
| FrDÂ 14 | 1800 | 11 | 16 | 16 | 40 | 10 max. | 16 |
| FrDÂ 20 | 5000 | 17 | 24 | 24 | 60 | 16 max. | 80 |
