Fridge Kit Freezer

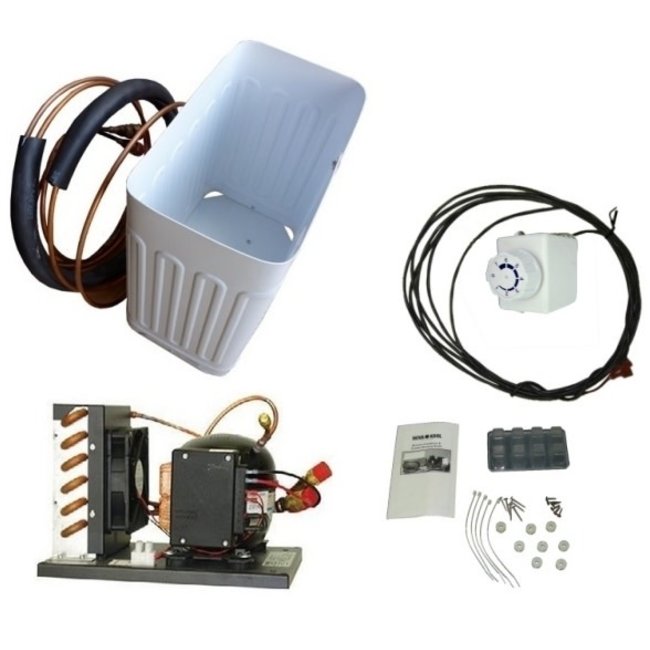

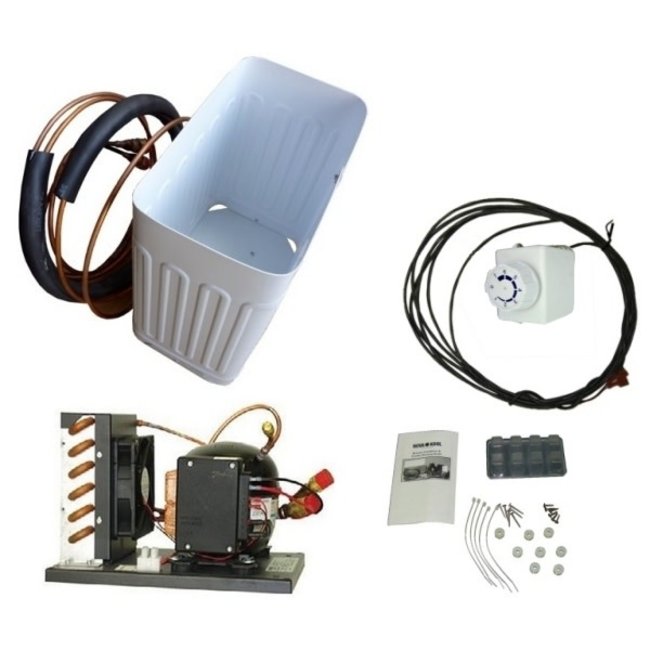

The Nova Kool LT201-RT4 Freezer Box model includes an efficient Danfoss BD series compressor and has 336 square inch plate surface area, formed into a box freezer, which is normally mounted vertically, like a bucket in the bottom of the cold box. The formed freezer box is 10.5"W x 6.5"H x 11.5"D, offering 0.45 cubic feet of freezer space. Can be used in a cold box, up to a maximun of 10 cubic feet (with 4" of insulation), that requires a small freezer compartment in the same space. Applications include marine, ambulance, veterinarian, farm, food vending and Mobile RV.

The RT4's small foot print allows for easy mounting, and is thermostat controlled for a wide range of settings. Consrtuction is a powder coated galvanized base which is corrosion resistant and easy to clean. Fan cooled condenser increases efficiency while the DC compressor is quiet, vibration free, safe and dependable. The pure DC unit minimizes RF noise / Electrolysis and is designed to operate at a constant angle of 30 degrees. The unit is shipped with everything you need to complete the installation.

Features:

• Self sealing couplings. (unit is precharged with refrigerant)
• Evaporator supplied with 12 ft line set.
• Efficient air cooled condenser, will provide years of simple reliable service in the tropics.
• Condenser is sized specifically to ensure capacity in the hottest of climates. Variable speed compressor. (adjusted by changing the resistance in control circuit)
• 18 GA powder coated steel with a compact foot print.
• Backed with Nova*Kool's Easy 2 Year Warranty Program on all components.
• Environmentally sound 134a refrigerant.
• Simple, efficient and reliable rollbond plate evaporators. Can in many cases be bent to conform to your requirements.
• Compressor designed to run continuously on a 30 degree heal.
• Low battery protection to help prevent full discharge of batteries.
• Low amperage fan.
• Compressor Draw: 12 VDC - 4.2A / 24 VDC - 2.1A
• Voltage: 12 & 24 VDC standard.
