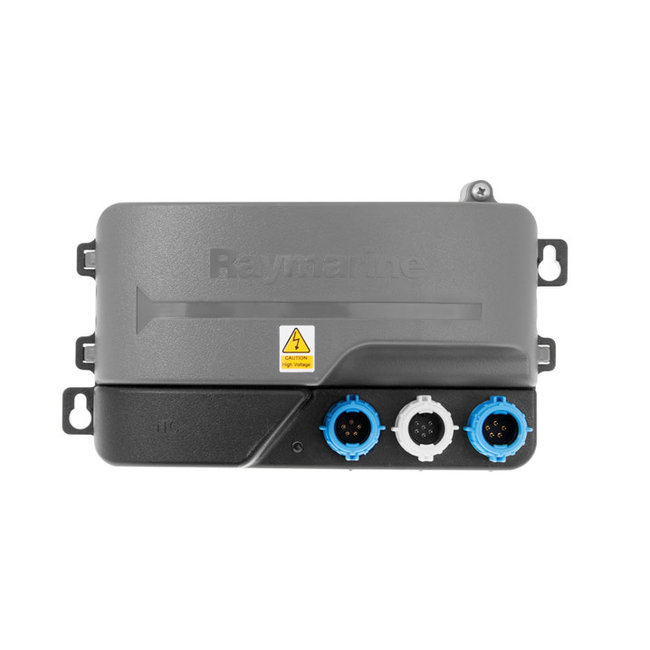

ITC5 Transducer Converter

• Product Number: E70010
• Nominal supply voltage: 12 V dc
• Operating voltage range: 9 - 16 V dc
• Current: <150 mA peak operating current
• Power consumption: Typical: 1.5 W
• Environmental:
• Installation environment:
• Operating temperature = 5ºf to +131ºF (-15ºC to +55ºC)
• Storage temperature = -13ºF to +158ºF (-25ºC to +70ºC)
• Relative humidity: max 95% Splash proof to IPX2
• Data connections:
• SeaTalkng backbone
• 1 x SeaTalkng spur
• 5 x transducer connections with spade terminals
• Conformance:
• Europe: 2004/108/EC
• Australia and New Zealand: C-Tick Compliance Level 2
