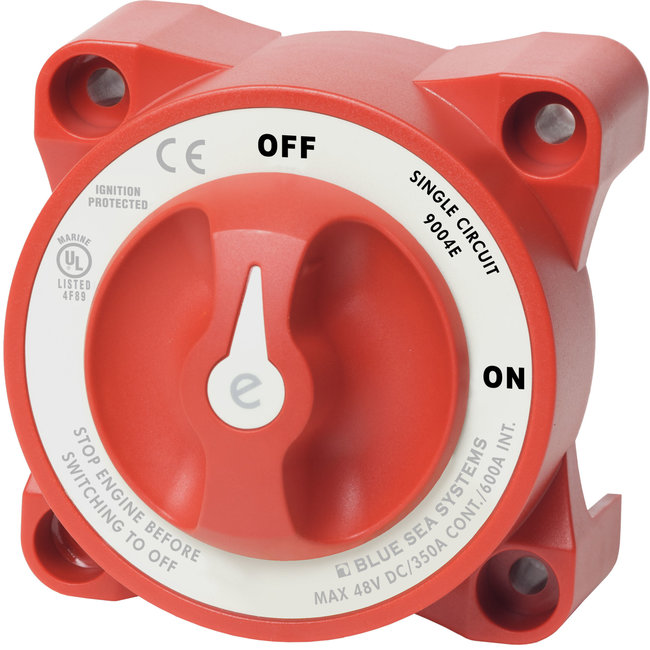

e-Series On-Off Battery Switch

• Includes AFD (Alternator Field Disconnect)
• Ignition protected—safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Switch Type: Single Circuit ON-OFF
• Color: Red
• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: Yes
• Maximum Voltage: 48V DC
• Continuous Rating: 350A
• Intermittent Rating: 600A (5 min)
• Cranking Rating 10 sec: 2000A
• Cranking Rating 1 min: 1000A
• Battery Inputs: 1
• Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept 1/4" (M6) Screw
• Terminal Stud Size: 3/8" - 16 (M10)
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
