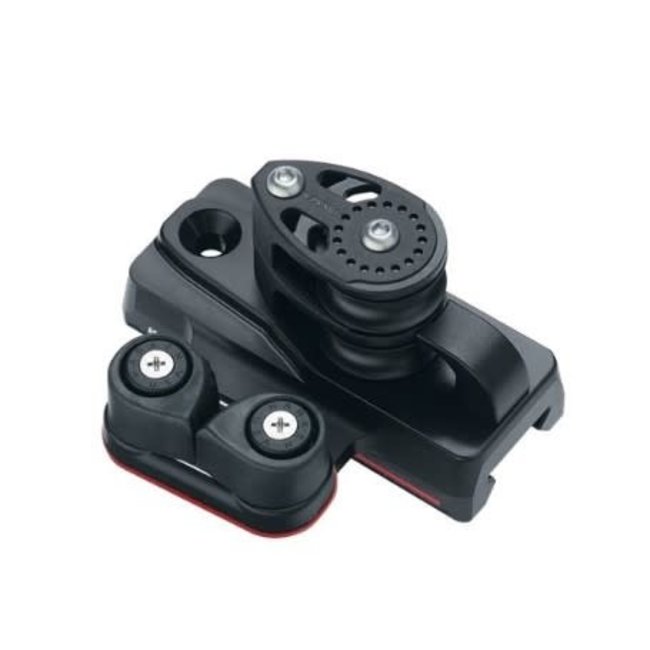

Harken E2756 Mid Range End Car 27mm
C$569.95Excl. tax
In stock
Harken 27mm ESP End Control - Double Sheave, Cam Cleat, Set of 2 Read more..
Product description
Mid Range End Cars 27mm
27mm ESP End Control — Double Sheave, Cam Cleat, Set of 2

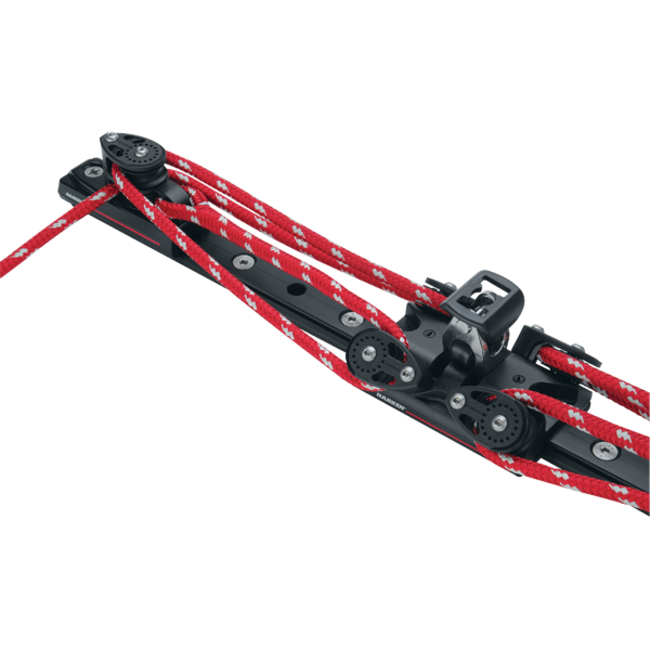

ESP end controls are value-oriented options for the installation of 2:1 to 5:1 systems. Designed for strength and durability, controls feature axle bearing sheaves with sideload ball bearings. Carbo-Cam® cleats provide precise cleating for the perfect traveler adjustment.
| Sheave Ø (mm) | 35 mm |
| Sheave Ø (in) | 1 3/8 in |
| Length (mm) | 95 mm |
| Length (in) | 3 3/4 in |
| Width (in) | 3 13/16 in |
| Width (mm) | 96 mm |
| Height above track (mm) | 56 mm |
| Height above track (in) | 2 1/4 in |
| Weight for pair (g) | 1278 g |
| Weight for pair (oz) | 23.4 oz |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Maximum working load (kg) | 272 kg |
| Maximum working load (lb) | 600 lb |
| Breaking load (lb) | 1500 lb |
| Breaking load (kg) | 680 kg |
| Purchase | 4:1 |
| Footnote | Maximum working loads and breaking loads based on cam strengths. |
