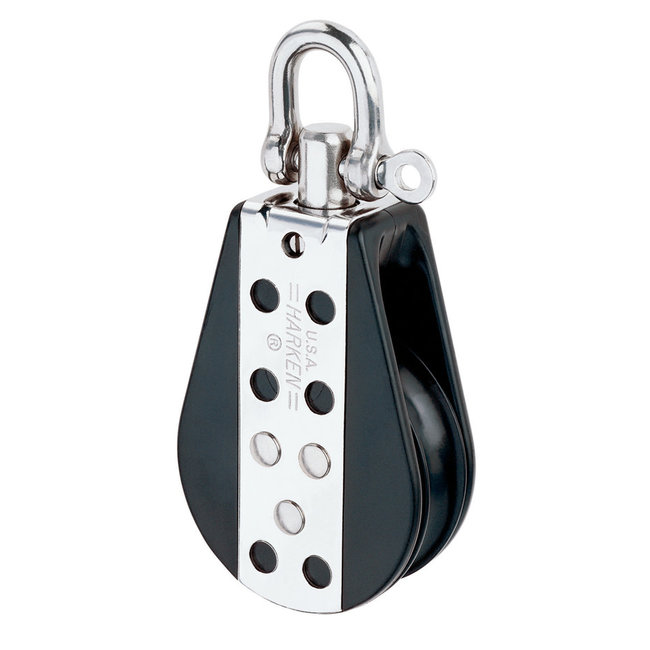

Mid Range Single 3"

Midrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.

• Sheave Ø (mm) 76 mm
• Sheave Ø (in) 3 in
• Length (mm) 156 mm
• Length (in) 6 1/8 in
• Maximum working load (kg) 816 kg
• Maximum working load (lb) 1800 lb
• Breaking load (kg) 2268 kg
• Breaking load (lb) 5000 lb
