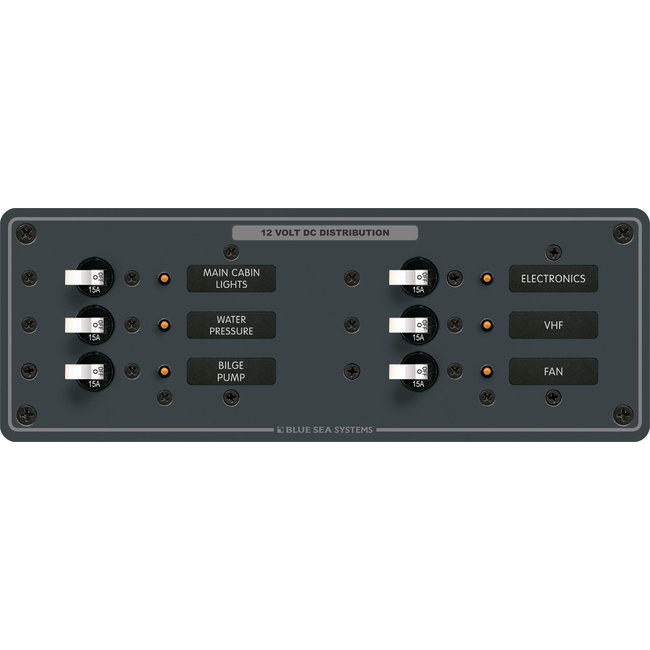

DC 6 Position

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions
• Positions: 6
• Nominal Voltage: 12V DC, 24V DC
• Maximum Amperage: 100A per bus
• Height 3.75in: (95.25 mm)
• Width 10.50in: (266.7 mm)
• Depth 2.50in: (63.5 mm)
