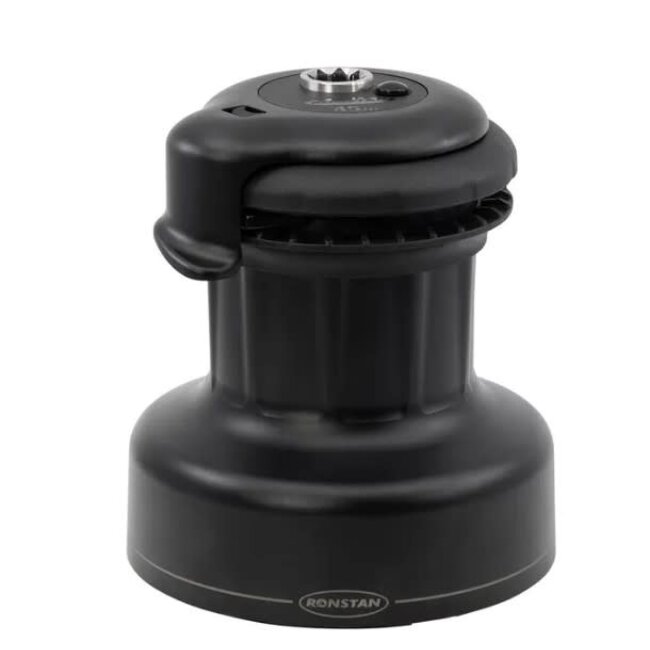

Laying the foundation for a new range of aluminium self-tailing winches, we were able to draw on years of experience manufacturing Andersen Stainless Steel Winches® within our own operations in Denmark. This experience was invaluable, setting the standard for reliability, mechanical efficiency, and an unparalleled user experience. For everything else, the new winches were developed from the deck up with different priorities determining material selection, weight optimisation, dimensions, gear and power ratios, manufacturing processes, surface finish, and performance.

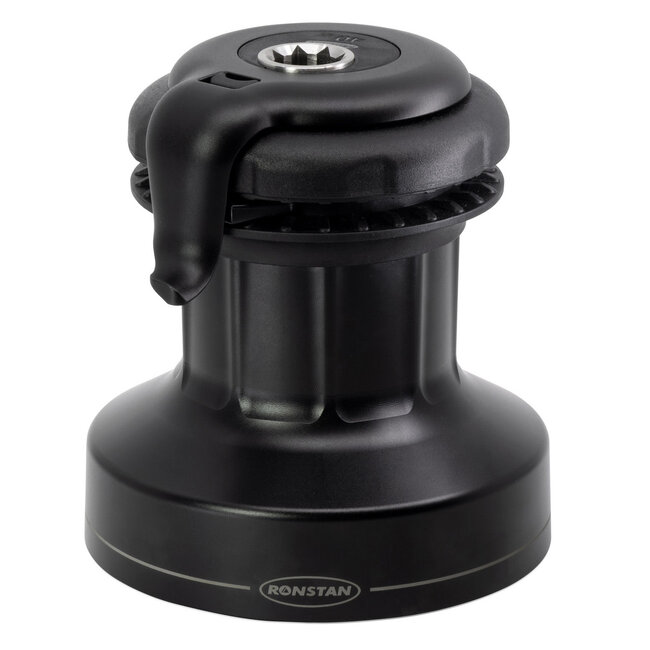

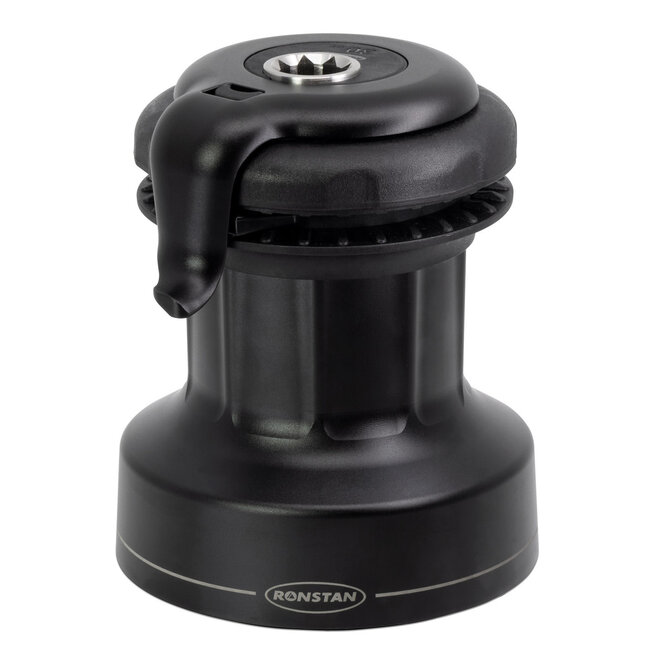

The first Orbit Winches™ were released in 2023, with three sizes suitable for boats up to around 12m where Ronstan is renowned for its comprehensive and competitive deck hardware range. Notably, the initial product launch marked the debut of the patented QuickTrim™ self-tailer*. The significance of this unique innovation was acknowledged with the Orbit Winch™ being named as a 2023 DAME Award joint category winner.

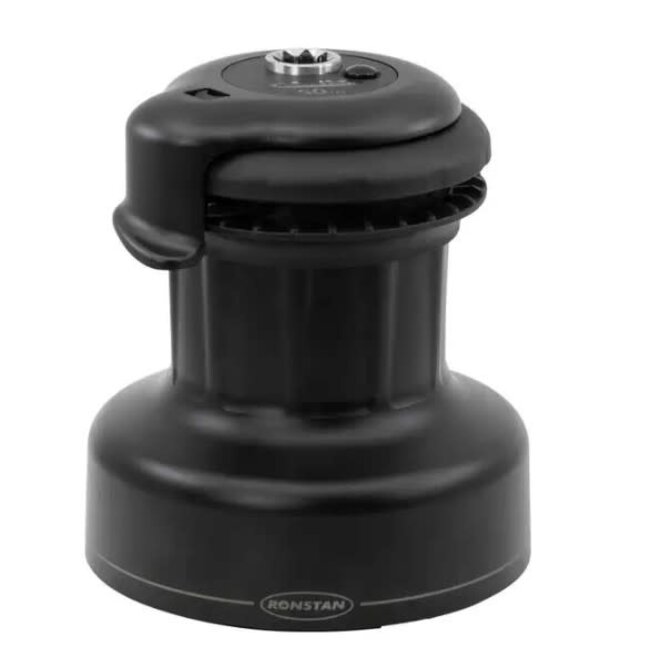

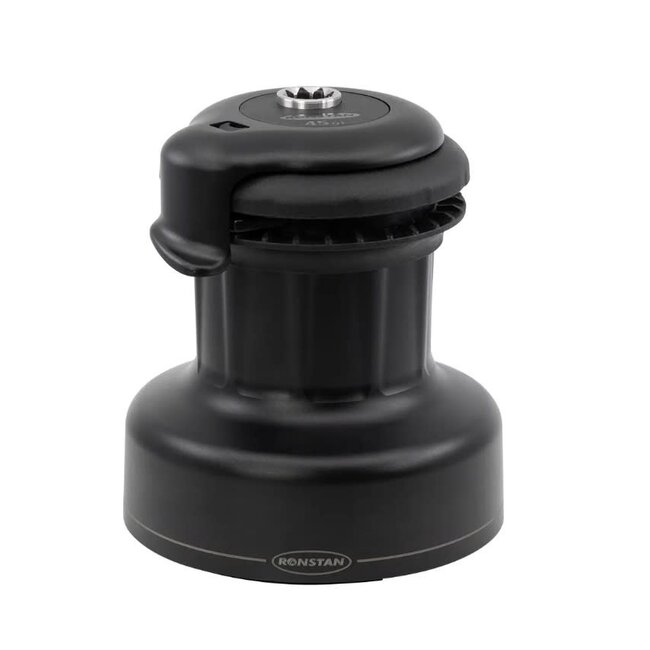

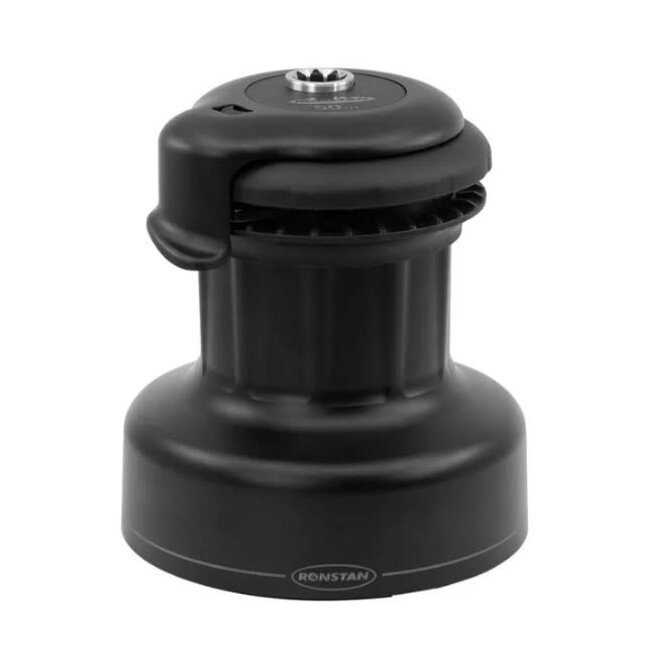

Building on the momentum of these award-winning winches, we have extended the range with the addition of two larger sizes: 45QT and 50QT. This offers new opportunities for using Orbit Winches™ on larger boats of 14m or more. In addition to the QuickTrim™ feature, the 45QT and 50QT can be specified with either a two-speed or a three-speed configuration.

E1 Electric Orbit Winches™ are a further addition to the range. Perfect for enjoying sailing short-handed or with friends and family, E1 Electric winches are engineered with unsurpassed levels of functionality, monitoring, and protections. Electric winches and conversion kits are available for sizes 30QT and 40QT in either 12V or 24V systems.

*Available from size 30QT and up

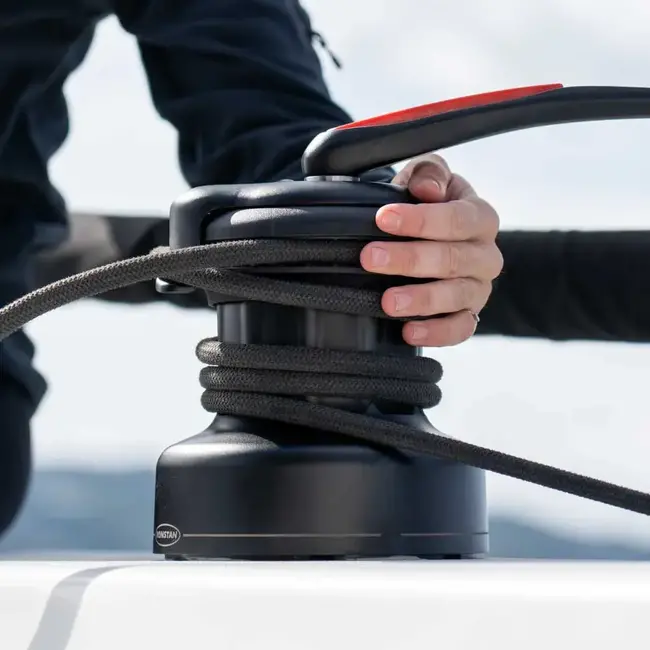

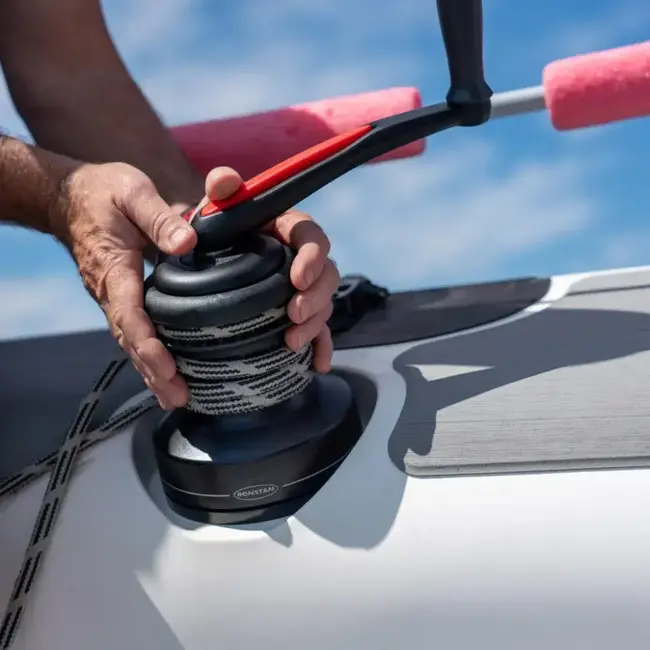

	INTRODUCING QUICKTRIM The innovative QuickTrim™ functionality allows sailors to easily and safely ease line tension to make minor sail trim adjustments without having to remove the winch handle or take the line out of the self-tailer. Racing sailors can react and respond instantly to minor changes in wind direction or steering, providing an unmatched advantage when frequent sail trim adjustments are required. It’s also a nice convenience for cruising sailors.  On the water, using QuickTrim™ is intuitive and quickly becomes second nature. With one hand on the tail of the sheet, rotating the top cover of the winch anti-clockwise against spring pressure allows the self-tailer to turn beneath it like a sheave as the rope is eased out, with smooth grip and control assured by the drum surface and Power Ribs™. When the top cover is allowed to spring back, the self-tailer locks again and grips the line to resume normal use. This simple, reliable feature is a real advantage when making frequent minor adjustments.  As delivered from the factory, Orbit Winches™ sizes 30QT and larger operate as traditional self-tailing winches. The QuickTrim™ feature is enabled by the user, simply by removing a single screw located within the self-tailer. Step-by-step instructions are included in the Quick Reference Guide provided with the winch, and in the product manual available from the Ronstan website.

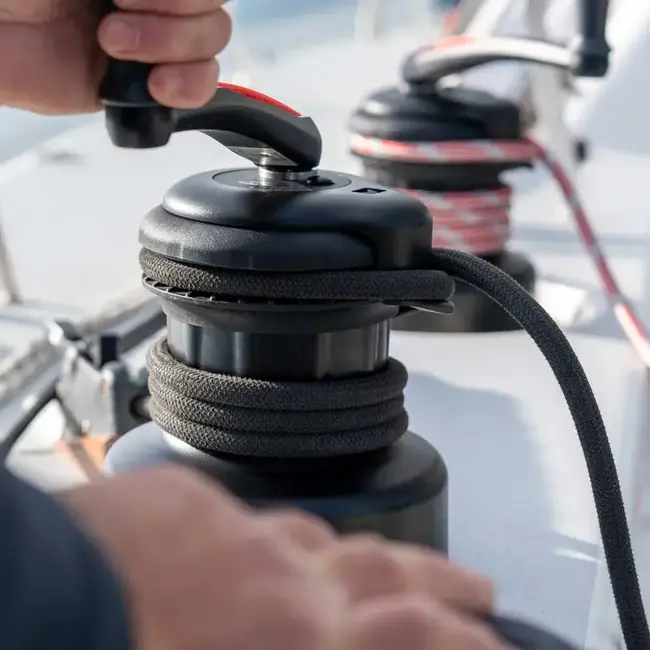

THREE SPEED MODE Featuring the fastest line speeds in our range, Ronstan three-speed Orbit Winches™ offer significant advantages in many racing and cruising situations that require rapid line retrieval. In the initial stages of trimming or hoisting sails, the high-speed first gear reduces the time and effort required to adjust sails efficiently. After quick initial line recovery at low load, the winch can be shifted to the slower second and third gears as load increases, using their greater mechanical advantage for precise control of heavy loads. The added versatility provided by the extra gear results in improved performance and safety on the water.   To engage the first gear with a fast 1.4:1 gear ratio, push the button on top of the winch and turn the winch handle clockwise. When the load becomes too heavy, turn the handle anti-clockwise to switch to the second gear. The winch will now operate as a two-speed winch, shifting between second and third gear with changes in handle direction. To return to the first gear for extra speed, simply push the button again.  Available for sizes 45QT and 50QT.

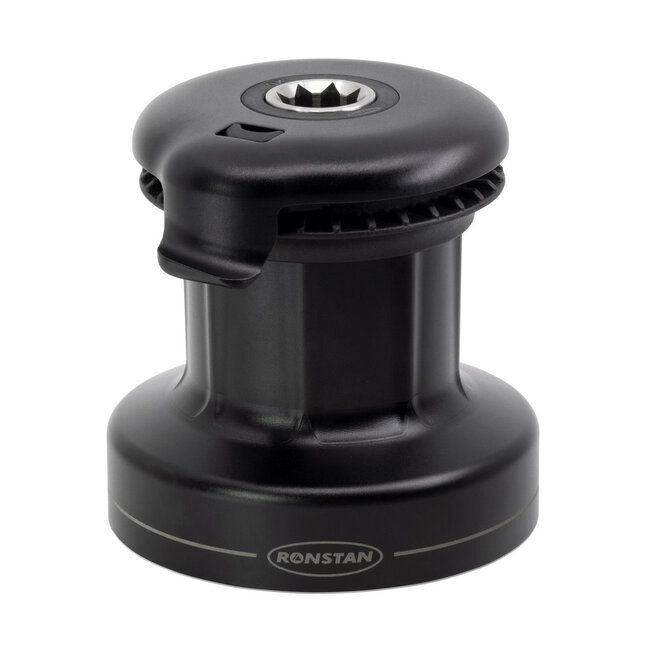

	NO TOOLS REQUIRED Full disassembly and reassembly can conveniently be performed without the need for any tools for sizes 20ST, 30QT, and 40QT.   To remove the drum, pull back the spring-loaded release latch and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch centre stem.  When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the centre stem. These notches allow the self-tailing arm to be locked in one of 8 positions at rotational increments of 45 degrees.
